KHP SD Three Phase Star Delta Multi Pump Fixed Speed Automation Controller SEGMENT MODELS Multi Pump STARTER • 1. Contactor based starter, MCB Included (Premium) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Toggle Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • All Parameters Fully Configurable at Site OTHERS (FEATURES) • Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications LED INDICATIONS • Healty • SPP/VUB/RP • OC / Overload • UC / Dryrun • LT Empty • Pump 1 • UT Full • Pump 2 SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Pump 1 / Alternate / Pump 2 • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 60 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V APPLICATIONS • Booster pumps in high-rise buildings • Hydro-pneumatic water supply systems • Industrial pressure boosting pumps • Fire line main pump systems • Process water pressure systems in industries SUITABLE FOR PUMPSET • Submersible / Openwell Star Delta Pumpsets • End Suction Centrifugal Star Delta Pumpsets • Vertical Multistage Star–Delta Pumpsets • Horizontal Split Case Star–Delta Pumpsets • Fire Fighting Main Pump Star Delta Pumpsets

KHP DOL Three Phase DOL Multi Pump Fixed Speed Automation Controller SEGMENT MODELS Multi Pump STARTER • 1. Contactor based starter, MCB Included (Premium) • 2. Contactor based starter, MCB Included (Classic) • 3. Electronic starter (Relay Based 40 Amp.) Lite DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Toggle Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • All Parameters Fully Configurable at Site OTHERS (FEATURES) • Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications LED INDICATIONS • Healty • SPP/VUB/RP • OC / Overload • UC / Dryrun • LT Empty • Pump 1 • UT Full • Pump 2 SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Pump 1 / Alternate / Pump 2 • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 5.0 HP / 7.5 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Water transfer booster systems • AHUs in HVAC Systems • Industrial water pressure control • Fire line jockey pump systems SUITABLE FOR PUMPSET • Centrifugal Monoblock Pumpsets End Suction Pumpsets Multistage Booster Pumpsets Air Handling Units (AHUs)

MPA 22 Single Phase Monoblock Bosster Multi Pump Fixed Speed Automation Controller SEGMENT MODELS Multi Pump STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Overload / Over Current (Site Settable) Dryrun / Under Current (Site Settable) TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Toggle Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • All Parameters Fully Configurable at Site OTHERS (FEATURES) • Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications LED INDICATIONS • Healthy • OC / Overload • UC / Dryrun • Timer • LT Empty • Pump 1 • UT Full • Pump 2 SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Pump 1 / All ON / Pump 2 • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 3.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Tap Feeding / Domestic Water Pressure Boosting • Overhead Tank Water Distribution • Bathroom & Shower Pressure Boosting • Garden Irrigation & Lawn Sprinklers • Car Washing Systems SUITABLE FOR PUMPSET • Mini Self-Priming Pump • Domestic Booster Pump • Inline Pressure Booster Pump

KHP PNPN Single Phase Monoblock Multi Pump Fixed Speed Automation Controller SEGMENT MODELS Multi Pump STARTER • 1. Contactor based starter, MCB Included (Premium) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Overload / Over Current (Site Settable) Dryrun / Under Current (Site Settable) TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Toggle Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • All Parameters Fully Configurable at Site OTHERS (FEATURES) • Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications LED INDICATIONS • Healthy • OC / Overload • UC / Dryrun • Timer • LT Empty • Pump 1 • UT Full • Pump 2 SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Pump 1 / Alternate / Pump 2 • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 3.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Tap Feeding / Domestic Water Pressure Boosting • Overhead Tank Water Distribution • Bathroom & Shower Pressure Boosting • Garden Irrigation & Lawn Sprinklers • Car Washing Systems SUITABLE FOR PUMPSET • Mini Self-Priming Pump • Domestic Booster Pump • Inline Pressure Booster Pump

KHP OPN Single Phase Openwell Multi Pump Fixed Speed Automation Controller with Run Capacitors SEGMENT MODELS Multi Pump STARTER • 1. Contactor based starter, MCB Included (Premium) • 2. Electronic starter (Relay Based 40 Amp.) Lite DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Overload / Over Current (Site Settable) Dryrun / Under Current (Site Settable) TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Toggle Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • All Parameters Fully Configurable at Site OTHERS (FEATURES) • Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications LED INDICATIONS • Healthy • OC / Overload • UC / Dryrun • Timer • LT Empty • Pump 1 • UT Full • Pump 2 SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Pump 1 / Alternate / Pump 2 • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Openwell Water Pumping Systems • Overhead Tank Filling and Level Maintenance • Water Transfer from Wells to Storage Tanks • Water Supply Systems for Commercial Buildings SUITABLE FOR PUMPSET • Openwell submersible pumpset • Vertical openwell Pumpset • Any pumpset with run capacitor requirements

KHP SUB Single Phase Submersible Multi Pump Fixed Speed Automation Controller with Start & Run Capacitors SEGMENT MODELS Multi Pump STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Overload / Over Current (Site Settable) Dryrun / Under Current (Site Settable) TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Toggle Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF / Force Changeover Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • All Parameters Fully Configurable at Site OTHERS (FEATURES) • Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications LED INDICATIONS • Healthy • OC / Overload • UC / Dryrun • Timer • LT Empty • Pump 1 • UT Full • Pump 2 SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Pump 1 / Alternate / Pump 2 • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Borewell Water Pumping Systems • Overhead Tank Filling and Level Maintenance • Agricultural and Landscape Irrigation Systems • Water Supply Systems for Residential and Commercial Buildings SUITABLE FOR PUMPSET • Borewell subersible pumpset • Openwell submersible pumpset • Vertical openwell Pumpset • Any pumpset with start & run capacitor requirements

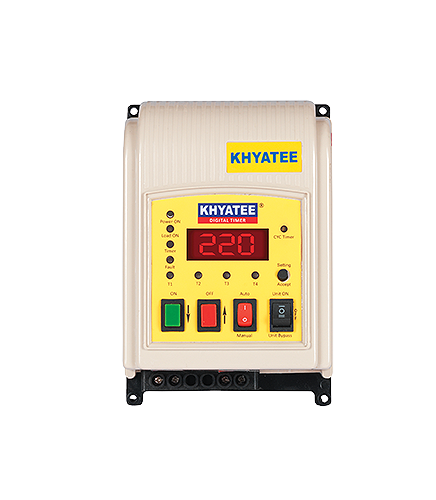

SDT BASIC TIMER CONTROLLER Single / Three Phase Basic Timer Controller SEGMENT MODELS Digital Timer STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Seven Segment Display TIMER • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) • Built-in Real Time Clock (RTC) timer with 4 ON and 4 OFF programmable settings TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • User-Friendly One-Touch Settings LED INDICATIONS • Power ON • Load ON • Timer • Fault • Timer T1 • Timer T2 • Timer T3 • Timer T4 • CYC Timer SWITCHES • Load ON • Load OFF • Auto / Manual • Unit ON / Unit OFF / Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Single Phase • Power Rating: 0.5 - 3.0 kW • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A • Three Phase: • Power Rating: 0.5 - 5.5 kW • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Street Lighting Automation • Parking Area Light Management • Solar Water System Control • Industrial Machinery Automation SUITABLE FOR PUMPSET • Inductive Electrical Loads • Lighting Systems • Solenoid Valves • Industrial Machinery • Air Compressors • Heaters • Industrial Ovens

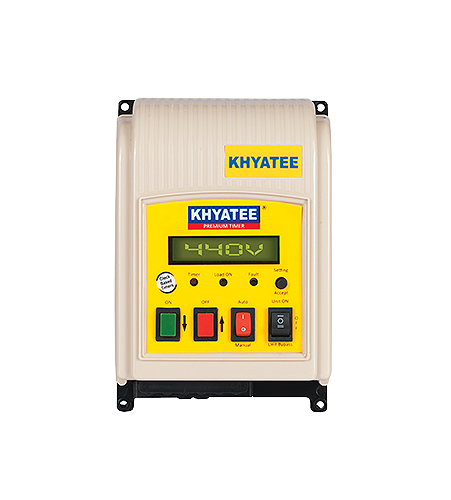

SDT PREMIUM TIMER CONTROLLER Single / Three Phase Premium Timer SEGMENT MODELS Digital Timer STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • LCD 16 * 2 Display TIMER • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) • Built-in Real Time Clock (RTC) timer with 4 ON and 4 OFF programmable settings TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • User-Friendly One-Touch Settings LED INDICATIONS • Timer • Load ON • Fault SWITCHES • Load ON • Load OFF • Auto / Manual • Unit ON / Unit OFF / Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Single Phase • Power Rating: 0.5 - 3.0 kW • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A • Three Phase: • Power Rating: 0.5 - 5.5 kW • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Solar Water Heater Circulation • Hot Water Recirculation in Buildings • Boiler & Heating Systems • Cooling Water Circulation • Industrial Process Circulation • Swimming Pool Water Circulation SUITABLE FOR PUMPSET • Centrifugal Recirculation Pump • Inline Circulation Pump • Booster Pump • Solar Circulation Pump • All Types of Heater Element

SDT PREMIUM TIMER WITH TEMPERATURE CONTROLLER Single / Three Phase Premium Timer & Temperature Controller with Provision to Connect 2 Nos PT 100 Sensors SEGMENT MODELS Digital Timer STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • LCD 16 * 2 Display TIMER • Auto Timer: Built-in Real Time Clock (RTC) timer with 4 ON and 4 OFF programmable settings, allowing the motor to operate automatically as per the temperature set through PT 100 temperature sensors • Manual Timer: Cyclic ON - OFF timer (site settable from 5 to 720 minutes) integrated within the Main Real Time Clock (RTC) Timer, allowing the motor to operate at fixed time intervals. TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • User-Friendly One-Touch Settings LED INDICATIONS • Timer • Load ON • Fault SWITCHES • Load ON • Load OFF • Auto / Manual • Unit ON / Unit OFF / Bypass • Setting / Accept OTHERS (CONTROLLER DISPLAY) • Supports Connection of 2 Nos PT 100 Temperature Sensors TECHNICAL SPECIFICATIONS • Single Phase • Power Rating: 0.5 - 3.0 kW • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A • Three Phase: • Power Rating: 0.5 - 5.5 kW • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Solar Water Heater Circulation • Hot Water Recirculation in Buildings • Boiler & Heating Systems • Cooling Water Circulation • Industrial Process Circulation • Swimming Pool Water Circulation SUITABLE FOR PUMPSET • Centrifugal Recirculation Pump • Inline Circulation Pump • Booster Pump • Solar Circulation Pump • All Types of Heater Element

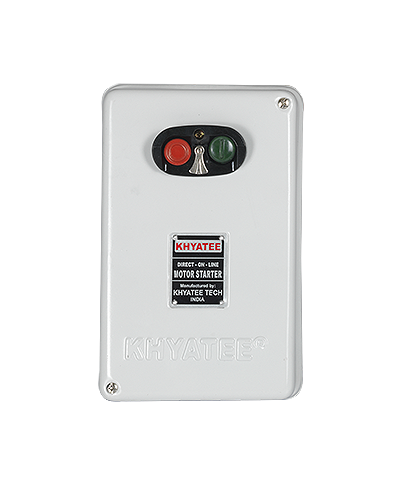

DOL STARTER Three Phase DOL Pump Starter SEGMENT MODELS Analog STARTER • MK1 Type Starter PROTECTIONS • Thermal Overload SWITCHES • Pump ON • Pump OFF APPLICATIONS • Agriculture and Irrigation Systems • Residential and Commercial Water Supply • Industrial Plants and Factories • Water Treatment and Pumping Stations SUITABLE FOR PUMPSET • Agricultural Irrigation Pumps • Industrial Motor Applications • Air Compressors • Conveyor Systems • Blowers and Fans • Water Treatment Plant Pumps

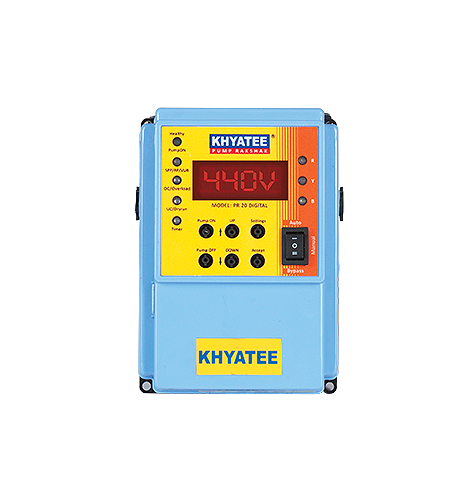

PR 20 DIGITAL Three Phase Dryrun Autoswitch Controller SEGMENT MODELS Analog STARTER • Compatible with All Standard DOL and Star-Delta Motor Starters PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Star Delta Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings LED INDICATIONS • Healthy / Pump ON • SPP / RP / VUB • OC / Overload • UC / Dryrun • Timer • R Phase • Y Phase • B Phase SWITCHES • Pump ON • Pump OFF • UP • DOWN • Settings • Accept • Auto / Bypass / Manual TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 60 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 99A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Irrigation in Horticulture & Agriculture • Small farm Irrigation • Industrial Machines, Fans & Blowers • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL / Star Delta Pumpset • Borewell & Openwell Subersible Pumpset • Centrifugal Monoblock Pumpset • Dewatering DOL Pumpset • Induction Motors • Conveyors, Mixers & Agitators

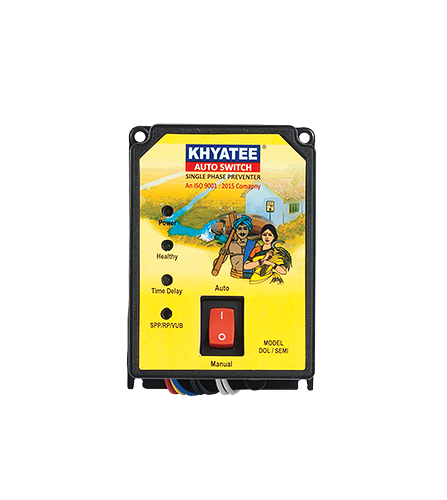

AUTOSWITCH Three Phase Autoswitch Single Phasing Preventor Controller SEGMENT MODELS Analog STARTER • Compatible with All Standard DOL and Star-Delta Motor Starters PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage Unbalance TIMER • Power ON Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller LED INDICATIONS • Power • Healthy • Time Delay • SPP / RP / VUB SWITCHES • Auto / Manual / Bypass TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 60 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 99A APPLICATIONS • Irrigation in Horticulture & Agriculture • Small farm Irrigation SUITABLE FOR PUMPSET • All types of DOL / Star Delta Pumpset • Borewell & Openwell Subersible Pumpset • Centrifugal Monoblock Pumpset • Dewatering DOL Pumpset
