semi automatic controllers

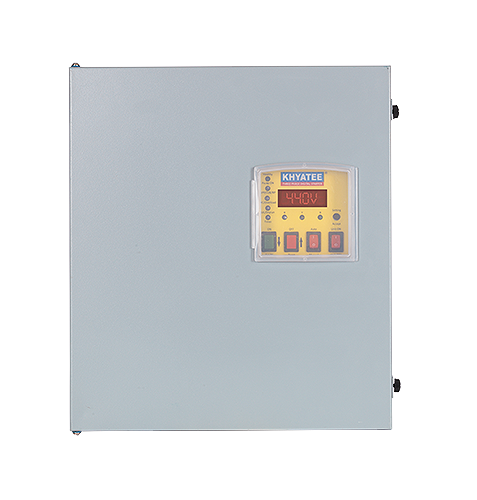

KDM SD Three Phase Star Delta Pump Starter Controller with OFF Timer SEGMENT MODELS Semi Automatic STARTER • Contactor based starter, MCB Included DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Star Delta Timer • OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings LED INDICATIONS • Healthy / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • Timer • R Phase • Y Phase • B Phase SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Unit ON / Unit OFF • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating 0.5 - 60 HP • Phase Three • Rated Voltage 440V • Frequency 50Hz • Voltage Range 280 - 480V APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Irrigation in Horticulture & Agriculture • Small farm Irrigation • Industrial Machines, Fans & Blowers • Dewatering from sumps SUITABLE FOR PUMPSET • All Types of Star-Delta Pumpsets • Borewell & Openwell Star-Delta Pumpsets • Centrifugal Monoblock Star-Delta Pumpsets • Dewatering Star-Delta Pumpsets • Induction Motors with Star-Delta Starting

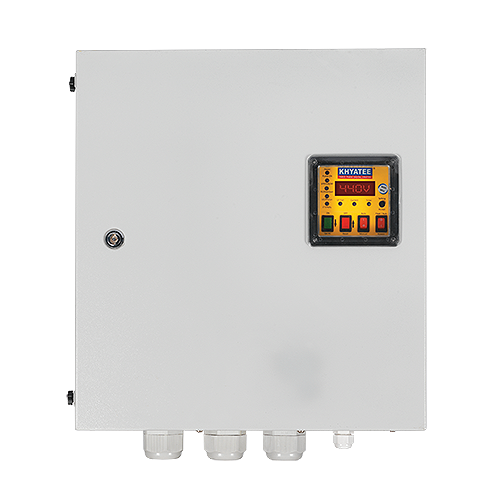

KDM DOL Three Phase DOL Pump Starter Controller with OFF Timer SEGMENT MODELS Semi Automatic STARTER • Contactor based starter, MCB Included DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings LED INDICATIONS • Healthy / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • Timer • R Phase • Y Phase • B Phase SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Unit ON / Unit OFF • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating 0.5 - 30 HP • Phase Three • Rated Voltage 440V • Frequency 50Hz • Voltage Range 280 - 480V APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Irrigation in Horticulture & Agriculture • Small farm Irrigation • Industrial Machines, Fans & Blowers • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL Pumpset • Borewell & Openwell Subersible DOL Pumpset • Centrifugal Monoblock DOL Pumpset • Dewatering DOL Pumpset • Induction Motors • Conveyors, Mixers & Agitators

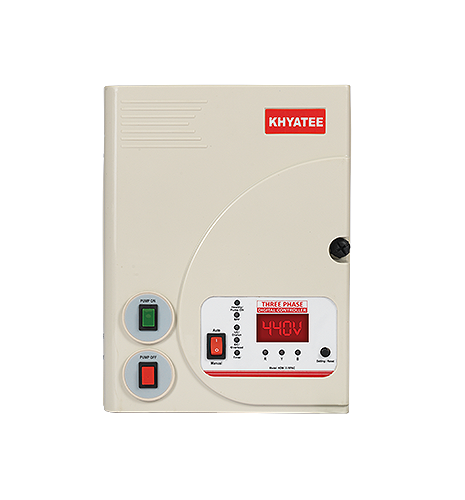

KDM 33 RPAC Three Phase DOL Pump Starter Controller with OFF Timer & Reverse Phase Auto Correction SEGMENT MODELS Semi Automatic STARTER • Electronic starter (Relay Based 40 Amp.) * 2 Nos DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side) • Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Automatic phase sequence correction in case of reverse phase from supply side LED INDICATIONS • Healthy / Pump ON • SPP • UC / Dryrun • OC / Overload • Timer • R Phase • Y Phase • B Phase SWITCHES • Pump ON • Pump OFF • Auto / Manual • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 7.5 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Construction site • Domestic and community water supply • Irrigation in Horticulture & Agriculture • Industrial Machines, Fans & Blowers • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL Pumpset • Borewell & Openwell Subersible DOL Pumpset • Centrifugal Monoblock DOL Pumpset • Dewatering DOL Pumpset • Induction Motors • Blowers & Industrial Fans • Conveyors, Mixers & Agitators

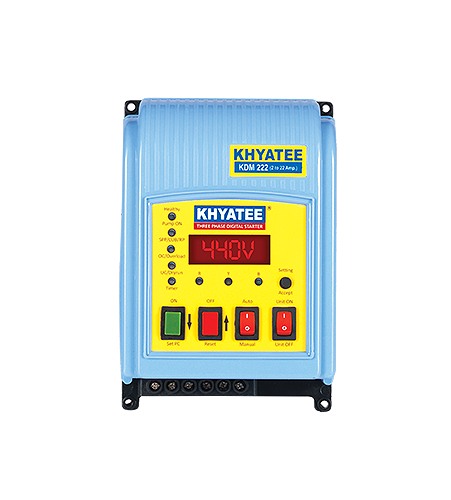

KDM 222 Three Phase DOL Pump Starter Controller with OFF Timer SEGMENT MODELS Semi Automatic STARTER • Electronic starter (Relay Based 40 Amp. / Phase) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings LED INDICATIONS • Healthy / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • Timer • R Phase • Y Phase • B Phase SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Unit ON / Unit OFF • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 7.5 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Irrigation in Horticulture & Agriculture • Small farm Irrigation • Industrial Machines, Fans & Blowers • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL Pumpset • Borewell & Openwell Subersible DOL Pumpset • Centrifugal Monoblock DOL Pumpset • Dewatering DOL Pumpset • Induction Motors • Blowers & Industrial Fans • Conveyors, Mixers & Agitators

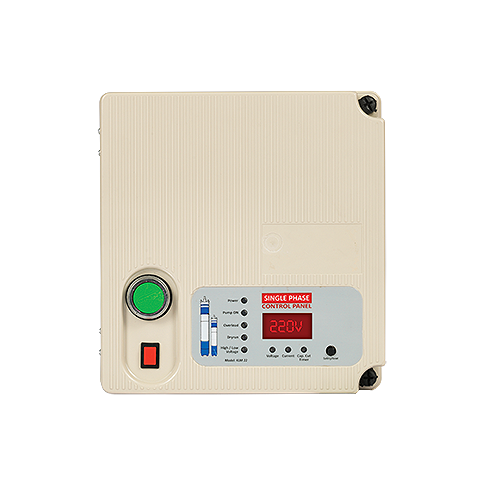

SEGMENT MODELS Semi Automatic STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current • Capacitor Cut Off Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • OC / Overload • UC / Dryrun • High / Low Voltage • Voltage • Current • Capacitor Cut Off Timer SWITCHES • Pump ON • Pump OFF • Setting / Reset TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP / 3.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A / 26A APPLICATIONS • Construction Site Water Management • Residential & Community Water Supply • High-Rise Building Pump Control Systems • Rural & Village Water Distribution • Agricultural & Horticulture Irrigation SUITABLE FOR PUMPSET • Borewell subersible pumpset • Openwell submersible pumpset • Vertical openwell Pumpset • Any pumpset with start & run capacitor requirements

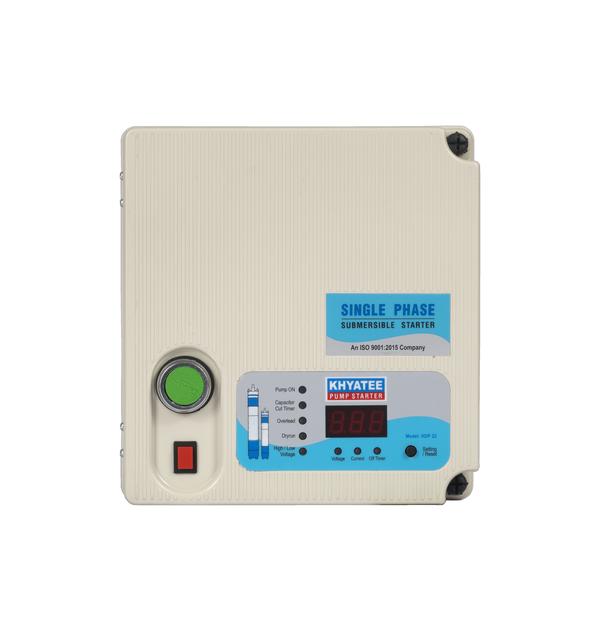

SEGMENT MODELS Semi Automatic STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current • Capacitor Cut Off Timer TIMER • OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Facility to connect Float Switch / Level Sensors for automatic pump cut-off when the tank is full LED INDICATIONS • Pump ON • Capacitor Cut Off Timer • OC / Overload • UC / Dryrun • High / Low Voltage • Voltage • Current • Off Timer SWITCHES • Pump ON • Pump OFF • Setting / Reset TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP / 3.0 HP / 5.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A / 26A / 40A APPLICATIONS • Construction and infrastructure sites • Domestic and community water distribution • Farmhouse and rural water supply • Any application with borewell to overhead tank filling SUITABLE FOR PUMPSET • Borewell subersible pumpset • Openwell submersible pumpset • Vertical openwell Pumpset • Any pumpset with start & run capacitor requirements

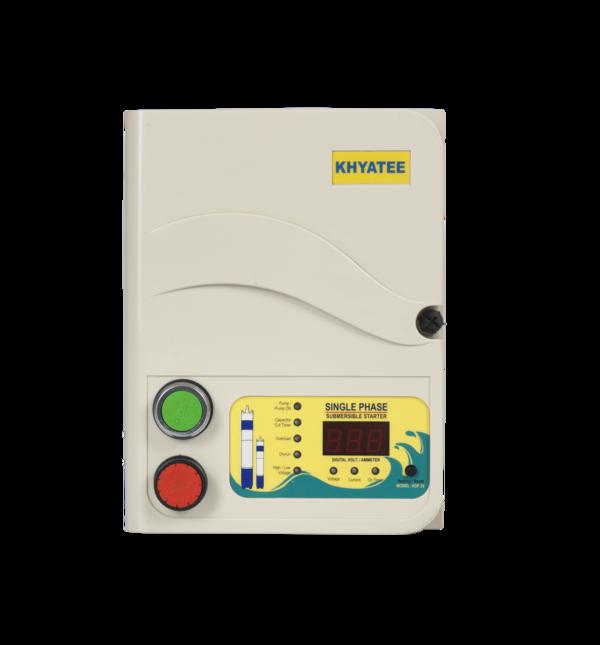

Segment Models Semi Automatic Starter Electronic starter (Relay Based 40 Amp.) Display Seven Segment Display - Digital Voltmeter & Ammeter Protections Overload / Over Current (Site Settable) Dryrun / Under Current (Site Settable) High / Low Voltage (Site Settable) Extreme High Current Capacitor Cut Off Timer Timer OFF Timer (Site Settable: Off - 5 - 720 min) Technology Microcontroller Software Technology Embedded Controller Settings One touch Pump Current Settings Automatic Protection Settings LED Indications Power / Pump ON Capacitor Cut Off Timer OC / Overload UC / Dryrun High / Low Voltage Voltage Current Off Timer Switches Pump ON Pump OFF Setting / Reset Technical Specifications Power Rating: 0.5 - 2.0 HP / 3.0 HP / 5.0 HP Phase: Single Rated Voltage: 220V Frequency: 50Hz Voltage Range: 160 - 280V Max. Current: 20A / 26A / 40A Applications Construction site Domestic and community water supply Water supplies for high rise building Rural water supply Irrigation in horticulture & agriculture Suitable for Pumpset Borewell subersible pumpset Openwell submersible pumpset Vertical openwell Pumpset Any pumpset with start & run capacitor requirements
