analog controllers

DOL STARTER Three Phase DOL Pump Starter SEGMENT MODELS Analog STARTER • MK1 Type Starter PROTECTIONS • Thermal Overload SWITCHES • Pump ON • Pump OFF APPLICATIONS • Agriculture and Irrigation Systems • Residential and Commercial Water Supply • Industrial Plants and Factories • Water Treatment and Pumping Stations SUITABLE FOR PUMPSET • Agricultural Irrigation Pumps • Industrial Motor Applications • Air Compressors • Conveyor Systems • Blowers and Fans • Water Treatment Plant Pumps

PR 20 DIGITAL Three Phase Dryrun Autoswitch Controller SEGMENT MODELS Analog STARTER • Compatible with All Standard DOL and Star-Delta Motor Starters PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Star Delta Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings LED INDICATIONS • Healthy / Pump ON • SPP / RP / VUB • OC / Overload • UC / Dryrun • Timer • R Phase • Y Phase • B Phase SWITCHES • Pump ON • Pump OFF • UP • DOWN • Settings • Accept • Auto / Bypass / Manual TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 60 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 99A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Irrigation in Horticulture & Agriculture • Small farm Irrigation • Industrial Machines, Fans & Blowers • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL / Star Delta Pumpset • Borewell & Openwell Subersible Pumpset • Centrifugal Monoblock Pumpset • Dewatering DOL Pumpset • Induction Motors • Conveyors, Mixers & Agitators

AUTOSWITCH Three Phase Autoswitch Single Phasing Preventor Controller SEGMENT MODELS Analog STARTER • Compatible with All Standard DOL and Star-Delta Motor Starters PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage Unbalance TIMER • Power ON Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller LED INDICATIONS • Power • Healthy • Time Delay • SPP / RP / VUB SWITCHES • Auto / Manual / Bypass TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 60 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 99A APPLICATIONS • Irrigation in Horticulture & Agriculture • Small farm Irrigation SUITABLE FOR PUMPSET • All types of DOL / Star Delta Pumpset • Borewell & Openwell Subersible Pumpset • Centrifugal Monoblock Pumpset • Dewatering DOL Pumpset

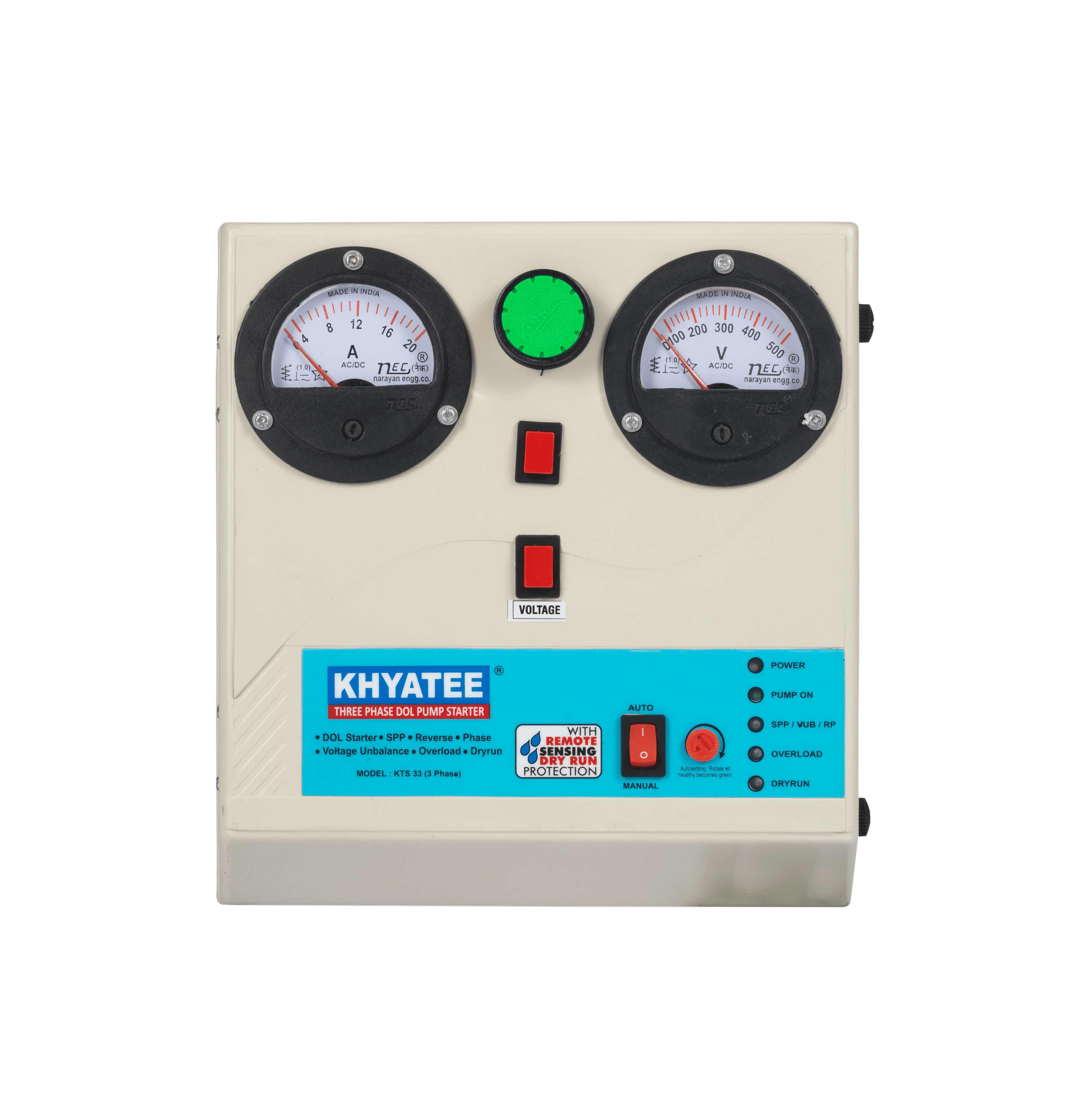

KTS 33 Three Phase DOL Pump Starter Controller SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp. / Phase) DISPLAY • Analog Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable)Extreme High Current TIMER • Power ON Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • Pump Current Setting via Adjustable Potentiometer Knob • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • SPP / VUB / RP • OC / Overload • UC / Dryrun SWITCHES • Pump ON • Pump OFF • Voltage • Auto / Manual TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 6 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Irrigation in Horticulture & Agriculture • Small farm Irrigation SUITABLE FOR PUMPSET • All types of DOL Pumpset • Borewell & Openwell Subersible DOL Pumpset • Centrifugal Monoblock DOL Pumpset • Induction Motors

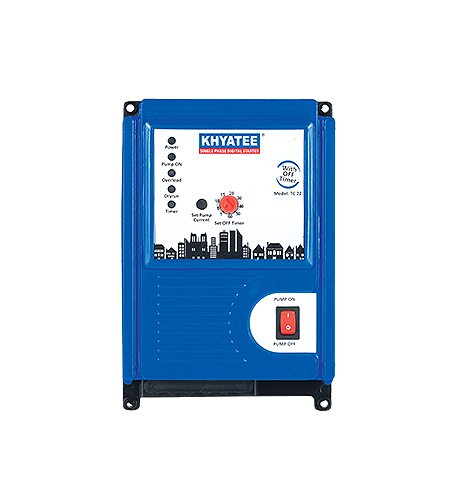

TC 22 Single Phase Monoblock Pump Starter Controller with OFF Timer SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp.) PROTECTIONS • Overload / Over Current • Dryrun / Under Current TIMER • OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • OC / Overload • UC / Dryrun • Timer SWITCHES • Set Pump Current • Pump ON / Pump OFF TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 3.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Domestic water supply • Lawn sprinklers • Water supply to over head tanks • Small farm Irrigation • Dewatering from sumps SUITABLE FOR PUMPSET • Monoblock Pumpset • Self Priming Pumpset • Dewatering Pumpset • Vertical & Horizontal Multistage Pumpsets

SS 22 Single Phase Monoblock Pump Starter Controller SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp.) PROTECTIONS • Overload / Over Current • Dryrun / Under Current TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • Pump Current Setting via Adjustable Potentiometer Knob • Automatic Protection Settings LED INDICATIONS • Power ON • Pump ON • OC / Overload • UC / Dryrun SWITCHES • Start • Stop / Reset TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Domestic water supply • Lawn sprinklers • Water supply to over head tanks • Small farm Irrigation • Dewatering from sumps SUITABLE FOR PUMPSET • Monoblock Pumpset • Self Priming Pumpset • Dewatering Pumpset • Vertical & Horizontal Multistage Pumpset

TC 22 Single Phase Openwell Pump Starter Controller with Run Capacitor and OFF Timer SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp.) PROTECTIONS • Overload / Over Current • Dryrun / Under Current TIMER • OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • OC / Overload • UC / Dryrun • Timer SWITCHES • Set Pump Current • Pump ON / Pump OFF TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 3.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Water supply to over head tanks • Water fountains • Construction site • Gardening and small farm irrigation • Domestic and community water supply SUITABLE FOR PUMPSET • Horizontal Openwell Pumpset • Vertical Openwell Pumpsets • Any pumpset with Run Capacitor requirements

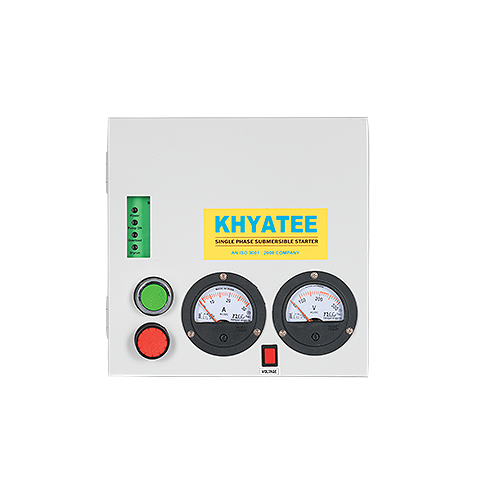

KSR 22 Single Phase Submersible Pump Starter Controller with Start & Run Capacitors SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Analog Voltmeter & Ammeter PROTECTIONS • Overload / Over Current • Dryrun / Under Current (Site Settable) • Extreme High Current • Capacitor Cut Off Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • Pump Current Setting via Adjustable Potentiometer Knob • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • OC / Overload • UC / Dryrun SWITCHES • Pump ON • Pump OFF • Voltage TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Construction Site • Residential Water Supply • Rural & Village Water Distribution • Agricultural & Horticulture Irrigation SUITABLE FOR PUMPSET • Borewell Subersible Pumpset • Openwell Submersible Pumpset • Any pumpset with Start & Run • Capacitor requirements

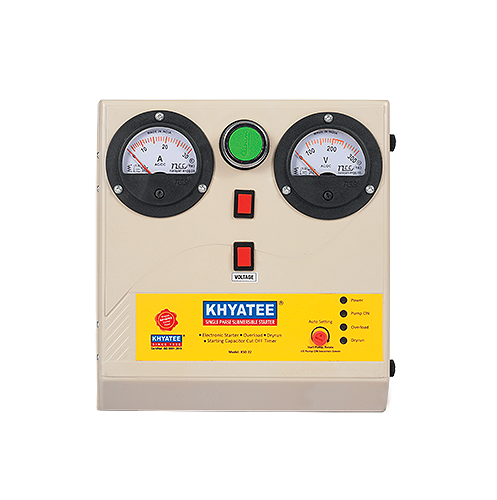

KSD 22 Single Phase Submersible Pump Starter Controller with Start & Run Capacitors SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Analog Voltmeter & Ammeter PROTECTIONS • Overload / Over Current • Dryrun / Under Current • Extreme High Current • Capacitor Cut Off Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • Pump Current Setting via Adjustable Potentiometer Knob • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • OC / Overload • UC / Dryrun SWITCHES • Pump ON • Pump OFF • Voltage TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Construction site • Domestic and community water supply • Rural water supply • Irrigation in Horticulture & Agriculture • Drip Irrigation Systems SUITABLE FOR PUMPSET • Borewell Subersible Pumpset • Openwell Submersible Pumpset • Any pumpset with Start & Run • Capacitor requirements
