KTS 33 Three Phase DOL Pump Starter Controller SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp. / Phase) DISPLAY • Analog Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable)Extreme High Current TIMER • Power ON Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • Pump Current Setting via Adjustable Potentiometer Knob • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • SPP / VUB / RP • OC / Overload • UC / Dryrun SWITCHES • Pump ON • Pump OFF • Voltage • Auto / Manual TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 6 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Irrigation in Horticulture & Agriculture • Small farm Irrigation SUITABLE FOR PUMPSET • All types of DOL Pumpset • Borewell & Openwell Subersible DOL Pumpset • Centrifugal Monoblock DOL Pumpset • Induction Motors

TC 22 Single Phase Monoblock Pump Starter Controller with OFF Timer SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp.) PROTECTIONS • Overload / Over Current • Dryrun / Under Current TIMER • OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • OC / Overload • UC / Dryrun • Timer SWITCHES • Set Pump Current • Pump ON / Pump OFF TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 3.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Domestic water supply • Lawn sprinklers • Water supply to over head tanks • Small farm Irrigation • Dewatering from sumps SUITABLE FOR PUMPSET • Monoblock Pumpset • Self Priming Pumpset • Dewatering Pumpset • Vertical & Horizontal Multistage Pumpsets

SS 22 Single Phase Monoblock Pump Starter Controller SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp.) PROTECTIONS • Overload / Over Current • Dryrun / Under Current TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • Pump Current Setting via Adjustable Potentiometer Knob • Automatic Protection Settings LED INDICATIONS • Power ON • Pump ON • OC / Overload • UC / Dryrun SWITCHES • Start • Stop / Reset TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Domestic water supply • Lawn sprinklers • Water supply to over head tanks • Small farm Irrigation • Dewatering from sumps SUITABLE FOR PUMPSET • Monoblock Pumpset • Self Priming Pumpset • Dewatering Pumpset • Vertical & Horizontal Multistage Pumpset

TC 22 Single Phase Openwell Pump Starter Controller with Run Capacitor and OFF Timer SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp.) PROTECTIONS • Overload / Over Current • Dryrun / Under Current TIMER • OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • OC / Overload • UC / Dryrun • Timer SWITCHES • Set Pump Current • Pump ON / Pump OFF TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 3.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Water supply to over head tanks • Water fountains • Construction site • Gardening and small farm irrigation • Domestic and community water supply SUITABLE FOR PUMPSET • Horizontal Openwell Pumpset • Vertical Openwell Pumpsets • Any pumpset with Run Capacitor requirements

KSR 22 Single Phase Submersible Pump Starter Controller with Start & Run Capacitors SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Analog Voltmeter & Ammeter PROTECTIONS • Overload / Over Current • Dryrun / Under Current (Site Settable) • Extreme High Current • Capacitor Cut Off Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • Pump Current Setting via Adjustable Potentiometer Knob • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • OC / Overload • UC / Dryrun SWITCHES • Pump ON • Pump OFF • Voltage TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Construction Site • Residential Water Supply • Rural & Village Water Distribution • Agricultural & Horticulture Irrigation SUITABLE FOR PUMPSET • Borewell Subersible Pumpset • Openwell Submersible Pumpset • Any pumpset with Start & Run • Capacitor requirements

KSD 22 Single Phase Submersible Pump Starter Controller with Start & Run Capacitors SEGMENT MODELS Analog STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Analog Voltmeter & Ammeter PROTECTIONS • Overload / Over Current • Dryrun / Under Current • Extreme High Current • Capacitor Cut Off Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • Pump Current Setting via Adjustable Potentiometer Knob • Automatic Protection Settings LED INDICATIONS • Power • Pump ON • OC / Overload • UC / Dryrun SWITCHES • Pump ON • Pump OFF • Voltage TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Construction site • Domestic and community water supply • Rural water supply • Irrigation in Horticulture & Agriculture • Drip Irrigation Systems SUITABLE FOR PUMPSET • Borewell Subersible Pumpset • Openwell Submersible Pumpset • Any pumpset with Start & Run • Capacitor requirements

KCD 122 Agitator & Dosing Pump Controller (One Working & One Standby) SEGMENT MODELS Chlorine Generator STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter TIMER • Power ON Timer • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Fully automatic Water Level Controller • Facility to connect Float Switch / Level Sensors / Magnetic Switch etc LED INDICATIONS • Healthy • Agitator ON • Agitator OFF • Timer • LT Empty • Dosing 1 • UT Full • Dosing 2 SWITCHES • Agitator ON • Agitator OFF • Dosing ON / Dosing 2 OFF • Dosing 1 ON / Dosing 2 ON / Alternet • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 3.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Water Treatment • Agriculture / Horticulture • Industrial Applications • Swimming Pools • Sewage / Effluent Treatment SUITABLE FOR PUMPSET • Chemical Dosing Pump • Chemical Injection Pump • Agitator / Brine Mixer

KCD 111 Dosing Pump Controller (One Working & One Standby) SEGMENT MODELS Chlorine Generator STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter TIMER • Power ON Timer • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Fully automatic Water Level Controller • Facility to connect Float Switch / Level Sensors / Magnetic Switch etc LED INDICATIONS • Healthy • Dosing 1 ON • Dosing 2 ON • Timer • LT Empty • Dosing 1 • UT Full • Dosing 2 SWITCHES • Dosing ON • Dosing OFF • Auto / Manual • Dosing 1 ON / Dosing 2 ON / Alternet • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 3.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A APPLICATIONS • Water Treatment • Agriculture / Horticulture • Industrial Applications • Swimming Pools • Sewage / Effluent Treatment SUITABLE FOR PUMPSET • Chemical Dosing Pump • Chemical Injection Pump

WIRELESS M4 GSM MASTER & TANK SET Three Phase DOL/ Star Delta GSM Master & Tank Controller (Starter Attachment Series) SEGMENT MODELS GSM Mobile Starter STARTER • Compatible with All Standard DOL and Star-Delta Motor Starters DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) • Repeat Run Timer (Site Settable: Off - 5 - 720 min) • MTC Timer: Clock based 4 ON & 4 OFF Real Time Clock Timers • Time Compensaon Enable / Disable Facility TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Setting • Automatic Protection Settings • Start / Stop / Monitor / Set your Pump from any location • Device Speaks on Phone Call in Local Language • Missed Call based ON / OFF Facility • Call Back Facility for Fault & Power Return • Get Verbal Voltage & Current information on Phone Call • Online Parameter Settings by SMS • Select Auto / Manual Mode on Phone Call • Add Four Authorized Users • Site Settable Four Digit Password with SIM Tracking • SMS Based Android Application & Realme Reports OTHERS (FEATURES) • Master Unit: Installed near the pump. • Tank Unit: Installed near the overhead tank along with a float switch. • Wireless Communication: The Master Unit and Tank Unit communicate with each other via SIM card (GSM network). • Automatic Operation: Ensures the tank remains filled at all times by automatically controlling the pump based on the float switch level. LED INDICATIONS Master Unit • Healthy / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • Timer • Voltage • Current • SMS / Ring • Network Tank Unit • Power • Voltage • WLC Byp • Low Battery • Feedback Error • Upper Tank Full • SMS / Ring • Upper Tank Empty • Network SWITCHES Master Unit • ON / Set PC • OFF / Reset • Auto / Manual • Unit ON / Unit OFF • Setting / Accept Tank Unit • ON • OFF / Reset • Unit ON / Unit OFF • Battery ON / Battery OFF • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 60 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 99A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Irrigation in Horticulture & Agriculture • Small farm Irrigation • Industrial Machines, Fans & Blowers • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL / Star Delta Pumpset • Borewell & Openwell Subersible Pumpset • Centrifugal Monoblock Pumpset • Dewatering DOL Pumpset • Induction Motors • Conveyors, Mixers & Agitators

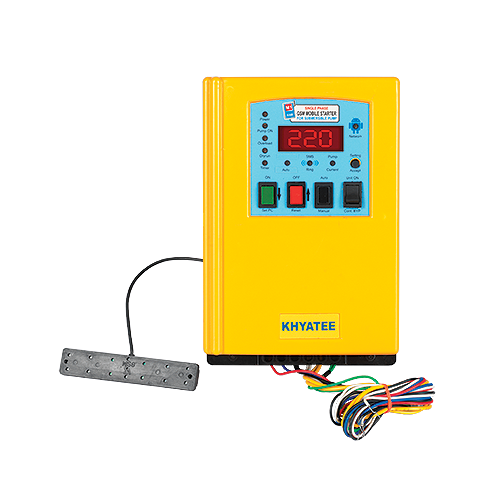

WIRELESS M1 GSM MASTER & TANK SET Single Phase Submersible / Openwell GSM Master & Tank Controller (Starter Attachment Series) SEGMENT MODELS GSM Mobile Starter STARTER • Compatible with All Standard Motor Starters DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) • Repeat Run Timer (Site Settable: Off - 5 - 720 min) • MTC Timer: Clock based 4 ON & 4 OFF Real Time Clock Timers • Time Compensaon Enable / Disable Facility TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Setting • Automatic Protection Settings • Start / Stop / Monitor / Set your Pump from any location • Device Speaks on Phone Call in Local Language • Missed Call based ON / OFF Facility • Call Back Facility for Fault & Power Return • Get Verbal Voltage & Current information on Phone Call • Online Parameter Settings by SMS • Select Auto / Manual Mode on Phone Call • Add Four Authorized Users • Site Settable Four Digit Password with SIM Tracking • SMS Based Android Application & Realme Reports OTHERS (FEATURES) • Master Unit: Installed near the pump. • Tank Unit: Installed near the overhead tank along with a float switch. • Wireless Communication: The Master Unit and Tank Unit communicate with each other via SIM card (GSM network). • Automatic Operation: Ensures the tank remains filled at all times by automatically controlling the pump based on the float switch level. LED INDICATIONS Master Unit • Power • Pump ON • OC / Overload • UC / Dryrun • Timer • Auto • SMS / Ring • Current • Network Tank Unit • Power • Voltage • WLC Byp • Low Battery • Feedback Error • Upper Tank Full • SMS / Ring • Upper Tank Empty • Network SWITCHES Master Unit • ON / Set PC • OFF / Reset • Auto / Manual • Unit ON / Unit OFF • Setting / Accept Tank Unit • ON • OFF / Reset • Unit ON / Unit OFF • Battery ON / Battery OFF • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 60 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 99A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Rural water supply • Irrigation in horticulture & agriculture SUITABLE FOR PUMPSET • Borewell subersible pumpset • Openwell submersible pumpset • Vertical openwell Pumpset • Any pumpset with start & run capacitor requirements

GSM DRYRUN Three Phase DOL/ Star Delta GSM Controller (Starter Attachment Series) SEGMENT MODELS GSM Mobile Starter STARTER • Compatible with All Standard DOL and Star-Delta Motor Starters PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage Unbalance • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) • Repeat Run Timer (Site Settable: Off - 5 - 720 min) • MTC Timer: Clock based 4 ON & 4 OFF Real Time Clock Timers • Time Compensaon Enable / Disable Facility TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Setting • Automatic Protection Settings • Start / Stop / Monitor / Set your Pump from any location • Device Speaks on Phone Call in Local Language • Missed Call based ON / OFF Facility • Call Back Facility for Fault & Power Return • Get Verbal Voltage & Current information on Phone Call • Online Parameter Settings by SMS • Select Auto / Manual Mode on Phone Call • Add Four Authorized Users • Site Settable Four Digit Password with SIM Tracking • SMS Based Android Application & Realme Reports LED INDICATIONS • Healthy / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • Timer • Voltage • Current • SMS / Ring • Network SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Unit ON / Unit OFF • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 35 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 60A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Irrigation in Horticulture & Agriculture • Industrial Machines, Fans & Blowers SUITABLE FOR PUMPSET • All types of DOL / Star Delta Pumpset • Borewell & Openwell Subersible Pumpset • Centrifugal Monoblock Pumpset

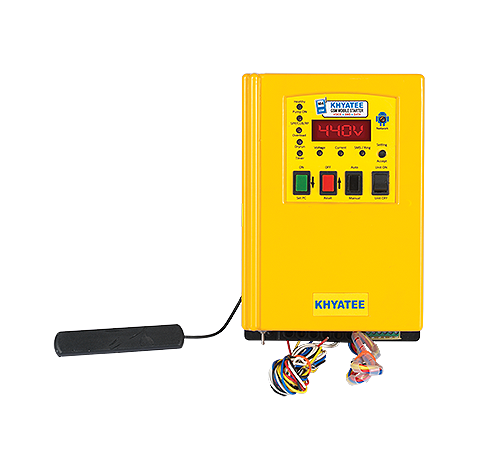

M4 GSM Three Phase DOL/ Star Delta GSM Controller (Starter Attachment Series) SEGMENT MODELS GSM Mobile Starter STARTER • Compatible with All Standard DOL and Star-Delta Motor Starters DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) • Repeat Run Timer (Site Settable: Off - 5 - 720 min) • MTC Timer: Clock based 4 ON & 4 OFF Real Time Clock Timers • Time Compensaon Enable / Disable Facility TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Setting • Automatic Protection Settings • Start / Stop / Monitor / Set your Pump from any location • Device Speaks on Phone Call in Local Language • Missed Call based ON / OFF Facility • Call Back Facility for Fault & Power Return • Get Verbal Voltage & Current information on Phone Call • Online Parameter Settings by SMS • Select Auto / Manual Mode on Phone Call • Add Four Authorized Users • Site Settable Four Digit Password with SIM Tracking • SMS Based Android Application & Realme Reports LED INDICATIONS • Healthy / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • Timer • Voltage • Current • SMS / Ring • Network SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Unit ON / Unit OFF • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 60 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 99A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Irrigation in Horticulture & Agriculture • Small farm Irrigation • Industrial Machines, Fans & Blowers • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL / Star Delta Pumpset • Borewell & Openwell Subersible Pumpset • Centrifugal Monoblock Pumpset • Dewatering DOL Pumpset • Induction Motors • Conveyors, Mixers & Agitators
