fully automatic controllers

KDM DOL WLC DW Three Phase DOL Pump Starter Controller with Water Level Controller for Dewatering Application SEGMENT MODELS Fully Automatic STARTER • Contactor based starter, MCB Included DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current • Moisture Sensor Connection for Leak Detection - Automatically trips the pump upon moisture detection • Thermal Sensor Connection - Provides winding temperature protection by tripping the pump in case of overheating TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Fully automatic Water Level Controller • Facility to connect Float Switch / Level Sensors / Magnetic Switch etc LED INDICATIONS • Power / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • Tank Empty • Moisture Sensor • Current • Thermal Sensor SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Float Auto / Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 30 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V APPLICATIONS • Dewatering from sumps • Flood water handling / emergency drainage • Sludge dewatering in STP / ETP • Industrial wastewater handling • Treated water sump drainage SUITABLE FOR PUMPSET • Submersible Dewatering Pumps • Sewage Submersible Pumps • Mud Pumps • Openwell Submersible Pumps • Vertical Dewatering Pumps

KDM SD WLC PS Three Phase Star Delta Pump Starter Controller with Water Level Controller for Pressure Switch Applications SEGMENT MODELS Fully Automatic STARTER • Contactor based starter, MCB Included DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Star Delta Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) • Toggle Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications LED INDICATIONS • Power / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • LT Empty • PS / UTF • Current • Timer SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Float Auto / Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 130 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V APPLICATIONS • Booster pumps in high-rise buildings • Hydro-pneumatic water supply systems • Industrial pressure boosting pumps • Fire line main pump systems • Process water pressure systems in industries SUITABLE FOR PUMPSET • Submersible / Openwell Star Delta Pumpsets • End Suction Centrifugal Star Delta Pumpsets • Vertical Multistage Star–Delta Pumpsets • Horizontal Split Case Star–Delta Pumpsets • Fire Fighting Main Pump Star Delta Pumpsets

KDM DOL WLC PS Three Phase DOL Pump Starter Controller with Water Level Controller for Pressure Switch Applications SEGMENT MODELS Fully Automatic STARTER • Contactor based starter, MCB Included DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) • Toggle Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications LED INDICATIONS • Power / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • LT Empty • PS / UTF • Current • Timer SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Float Auto / Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 30 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V APPLICATIONS • Water transfer booster systems • AHUs in HVAC Systems • Industrial water pressure control • Fire line jockey pump systems SUITABLE FOR PUMPSET • Centrifugal Monoblock Pumpsets End Suction Pumpsets Multistage Booster Pumpsets Air Handling Units (AHUs)

KTP 99 WLC PS Three Phase DOL Pump Starter Controller with Water Level Controller for Pressure Switch Applications SEGMENT MODELS Fully Automatic STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) • Toggle Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications LED INDICATIONS • Power / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • LT Empty • PS / UTF • Current • Timer SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Float Auto / Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 7.5 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Constant pressure water supply systems • Booster pump systems in buildings • Industrial water pressure control • Tap Feeding Commercial Projects SUITABLE FOR PUMPSET • Vertical & Horizontal Multistage Pumpset • Vertical & Horizontal Inline Pumpset • Centrifugal Monoblock Pumpset • Submersible Booster Pumpset

THREE PHASE WLC Three Phase Water Level Controller (Attachment Series) SEGMENT MODELS Fully Automatic STARTER • Compatible with All Standard DOL and Star-Delta Motor Starters TIMER • Power ON Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller OTHERS (FEATURES) • Two tank fully automatic Water Level Controller • Facility to connect Float Switch / Level Sensors / Magnetic Switch etc LED INDICATIONS • Upper Tank Full • Upper Tank Empty • Pump ON • Lower Tank Full • Lower Tank Empty SWITCHES • WLC Auto / Unit OFF / WLC Bypass APPLICATIONS • Domestic water supply • Lawn sprinklers • Water supply to over head tanks • Small farm Irrigation • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL Pumpset • All types of Star Delta Pumpset

KDM SD WLC Three Phase Star Delta Pump Starter Controller with Water Level Controller SEGMENT MODELS Fully Automatic STARTER • Contactor based starter, MCB Included DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Star Delta Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Two tank fully automatic Water Level Controller • Facility to connect Float Switch / Level Sensors / Magnetic Switch etc LED INDICATIONS • Power / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • LT Empty • UT Full • Current • Timer SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Float Auto / Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 130 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V APPLICATIONS • Large overhead tank filling • Industrial water supply • Community water supply • Agricultural irrigation • Dewatering from sumps SUITABLE FOR PUMPSET • Borewell / Openwell Submersible Star Delta Pumpsets • Centrifugal Monoblock Star Delta Pumpsets • Agricultural Irrigation Star Delta Pumpsets • Industrial Water Supply Star Delta Pumpsets

KDM DOL WLC Three Phase DOL Pump Starter Controller with Water Level Controller SEGMENT MODELS Fully Automatic STARTER • Contactor based starter, MCB Included DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Two tank fully automatic Water Level Controller • Facility to connect Float Switch / Level Sensors / Magnetic Switch etc LED INDICATIONS • Power / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • LT Empty • UT Full • Current • Timer SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Float Auto / Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 30 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V APPLICATIONS • Ground water supply to water works • Water supply to single / mulple overhead tanks • Domestic and community water supply • Gardening and small farm irrigation • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL Pumpset • Borewell & Openwell Subersible DOL Pumpset • Centrifugal Monoblock DOL Pumpset • Dewatering DOL Pumpset • Induction Motors

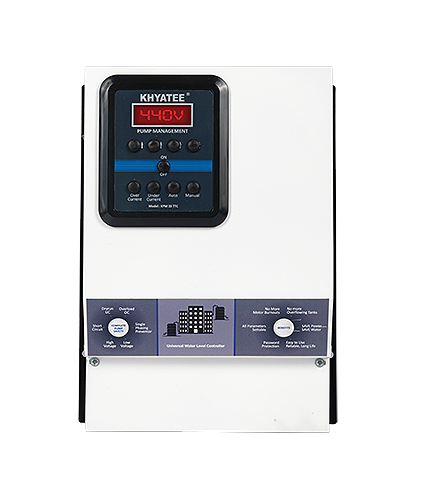

KPM 33 TTC Three Phase DOL Pump Starter Controller with Water Level Controller SEGMENT MODELS Fully Automatic STARTER • Electronic starter (Relay Based 40 Amp. / Phase) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage & Current Unbalance • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings • Password Protection for Settings OTHERS (FEATURES) • Two tank fully automatic Water Level Controller • Facility to connect Float Switch / Level Sensors / Magnetic Switch etc SWITCHES • Value Setting (4 Switches) • ON / OFF • Over Current • Under Current • Auto • Manual TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 7.5 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Ground water supply to water works • Water supply to single / mulple overhead tanks • Domestic and community water supply • Water transfer between tanks SUITABLE FOR PUMPSET • Borewell Subersible Pumpset • Openwell Submersible Pumpset • All types of DOL Pumpset

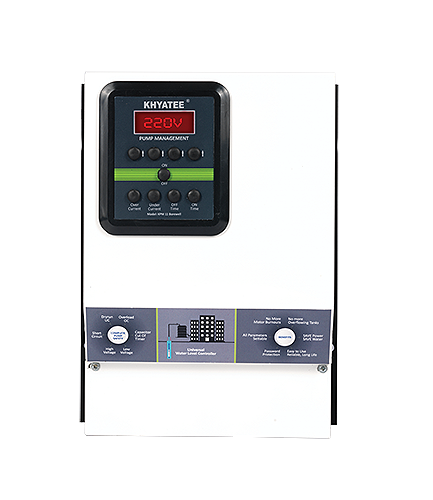

KPM 33 BORE Three Phase DOL Pump Starter Controller with Water Level Controller SEGMENT MODELS Fully Automatic STARTER • Electronic starter (Relay Based 40 Amp. / Phase) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side) • Reverse Phase, Voltage & Current Unbalance Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings • Password Protection for Settings OTHERS (FEATURES) • Borewell Automation Controller • Facility to connect Float Switch / Level Sensors for Upper Tank SWITCHES • Value Setting (4 Switches) • ON / OFF • Over Current • Under Current • OFF Time • ON Time TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 7.5 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Construction Site Water Supply • Water Supply for Schools, Hospitals & Institutions • Domestic Water Supply for Houses & Apartments • Gardening and small farm irrigation • Agricultural Irrigation in Farms & Fields SUITABLE FOR PUMPSET • Borewell Subersible Pumpset • Openwell Submersible Pumpset • All types of DOL Pumpset

KTP 99 WLC Three Phase DOL Pump Starter Controller with Water Level Controller SEGMENT MODELS Fully Automatic STARTER • Electronic starter (Relay Based 40 Amp. / Phase) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Two tank fully automatic Water Level Controller • Facility to connect Float Switch / Level Sensors / Magnetic Switch etc LED INDICATIONS • Power / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • LT Empty • UT Full • Current • Timer SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Float Auto / Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 7.5 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Flood water handling • Small farm Irrigation • Industrial Machines, Fans & Blowers • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL Pumpset • Borewell & Openwell Subersible DOL Pumpset • Centrifugal Monoblock DOL Pumpset • Dewatering DOL Pumpset • Induction Motors

KTP 66 WLC Three Phase DOL Pump Starter Controller with Water Level Controller SEGMENT MODELS Fully Automatic STARTER • Electronic starter (Relay Based 40 Amp. / Phase) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Phase Failure (Supply Side / Motor Side) • Reverse Phase, Voltage & Current Unbalance Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Two tank fully automatic Water Level Controller • Facility to connect Float Switch / Level Sensors / Magnetic Switch etc LED INDICATIONS • Power / Pump ON • SPP / CUB / RP • OC / Overload • UC / Dryrun • LT Empty • UT Full • Current • Timer SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Float Auto / Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 7.5 HP • Phase: Three • Rated Voltage: 440V • Frequency: 50Hz • Voltage Range: 280 - 480V • Max. Current: 16A APPLICATIONS • Construction site • Domestic and community water supply • Water supplies for high rise building • Flood water handling • Small farm Irrigation • Industrial Machines, Fans & Blowers • Dewatering from sumps SUITABLE FOR PUMPSET • All types of DOL Pumpset • Borewell & Openwell Subersible DOL Pumpset • Centrifugal Monoblock DOL Pumpset • Dewatering DOL Pumpset • Induction Motors

KDP 99 WLC Single Phase Submersible Pump Starter Controller with Start, Run Capacitors and Water Level Controller for Pressure Switch Applications SEGMENT MODELS Fully Automatic STARTER • Electronic starter (Relay Based 40 Amp.) DISPLAY • Seven Segment Display - Digital Voltmeter & Ammeter PROTECTIONS • Overload / Over Current (Site Settable) • Dryrun / Under Current (Site Settable) • High / Low Voltage (Site Settable) • Extreme High Current TIMER • Power ON Timer • Dryrun Autostart Timer (Site Settable: Off - 5 - 720 min) • Cyclic ON - OFF Timer (Site Settable: Off - 5 - 720 min) • Toggle Timer (Site Settable: Off - 5 - 720 min) TECHNOLOGY • Microcontroller Software Technology Embedded Controller SETTINGS • One touch Pump Current Settings • Automatic Protection Settings OTHERS (FEATURES) • Facility to connect Pressure Switch / Float Switch for Automatic Water Level Control for Tap Feeding / Tank Filling applications LED INDICATIONS • Power / Pump ON • OC / Overload • UC / Dryrun • PS / UTF • LT Empty • Voltage • Current • Timer SWITCHES • ON / Set PC • OFF / Reset • Auto / Manual • Float Auto / Float Bypass • Setting / Accept TECHNICAL SPECIFICATIONS • Power Rating: 0.5 - 2.0 HP / 3.0 HP / 5.0 HP • Phase: Single • Rated Voltage: 220V • Frequency: 50Hz • Voltage Range: 160 - 280V • Max. Current: 20A / 26A / 40A APPLICATIONS • Ground water supply to water works • Water supply to single / mulple overhead tanks • Domestic and community water supply • Gardening and small farm irrigation SUITABLE FOR PUMPSET • Borewell Subersible Pumpset • Openwell Submersible Pumpset • Any pumpset with Start & Run Capacitor requirements
